玻璃打膠機的出產產線
Production line of glass gluing machine

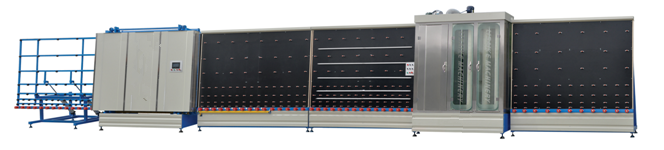

中空玻璃出產線首要有四段：入料段、清洗單調段、檢查段和合片段。四段均以相同的傾角立式安放，結構緊湊、經濟實用、功率高、維護便當。清洗箱為不銹鋼材料制造，傳送輥為耐酸 堿橡膠輥;通過有機玻璃視窗可隨時便當地查詢玻璃清洗狀況;入料段、清洗單調段選用手動無級調速電機傳動，玻璃以佳的速度平穩地工作。單調段選用大風力歪斜風刀能使玻璃表面得以枯 燥。檢查段設有燈管，能清楚地檢查玻璃的清洗質量;合片段具有玻璃定位及鋁框定位設備，能結束玻璃定位、鋁框定位安放功用。玻璃由傳送膠輥承托及傳送，傳送輥由電機(輥壓段電機)經 過變頻調速器通過鏈輪帶動，玻璃由清洗單調段低速進入本段，經檢查合格后加速工作下一作業段，進步作業功率;由變頻調速器控制本段調速電機的工作速度，光電開關控制玻璃進入下一 作業段。
There are four main sections for insulating glass production line: feeding section, cleaning monotone section, inspection section and closing segment. The four sections are placed vertically in the same dip angle, compact, economical and practical, high power and convenient maintenance. The cleaning box is made of stainless steel and the conveyor roll is acid and alkali resistant rubber roll. The glass cleaning condition can be inquired conveniently and locally at any time through the plexiglass window. The manual stepless speed regulating motor is used for the feeding section and the monotonous cleaning section, and the glass works smoothly at the best speed. The use of large wind deflection blades can make the surface of the glass dull. The inspection section is equipped with a lamp tube, which can clearly check the glass cleaning quality; the combination section has the glass positioning and aluminum frame positioning equipment, which can end the glass positioning, aluminum frame positioning and placement functions. Glass is supported and transported by conveyor cots, conveyor cots are driven by motors (roll section motors) through frequency converters through sprockets, glass is cleaned by monotonous low-speed into this section, after checking up to speed up work to the next section, improve operating power; by frequency converter governor to control the speed of this section of the speed control motor, optoelectronic. The switch controls the glass into the next operation section.
中空玻璃出產線粘著磨損，在切向力的作用下，抵觸副表面的吸附膜和服污膜遭到損壞，使表面的輪廓峰在彼此作用的各點處發生冷焊，由于相對運動，材料便從一個表面轉移到另一個外 表，構成粘著磨損。
Under the action of tangential force, the adsorptive film and the clothing fouling film on the surface of the pair are damaged. The surface contour peaks are cold welded at the points where they interact. Due to relative movement, the material is transferred from one surface to another, forming adhesive wear.
中空玻璃打膠機  丁基涂膠機 功用特征選用PC控制系統，定位，傳送，涂膠可自動結束，氣液增壓系統控制，安穩可靠，涂膠均勻，膠量，不銹鋼作業臺面便于清理，首要元器件云 選用知名
The price of hollow glass gluing machine butyl gluing machine function features selection of PC control system, positioning, transmission, gluing can be automatically terminated, gas-liquid pressurization system control, stable and reliable, uniform glue coating, glue volume, stainless steel table surface easy to clean up, the main component cloud selection of well-known brands

中空玻璃設備的運用越來越廣泛,在設備給我們供給贏利的時分我們也不能遺忘他們也需求"呵護",下面簡略介紹一下中空玻璃設備的保養事項:
Hollow glass equipment is more and more widely used, and we can not forget that they also need "care" when the equipment provides us with a profit. Here is a brief introduction to the maintenance of hollow glass equipment.
1.中空玻璃設備擺角板前后支撐及其它活動處要常常注入潤滑油.
1. the insulating glass equipment is often injected with lubricating oil before and after the supporting plate and other parts of the swing board.
2.中空玻璃設備每作業5000小時后,應對機頭主軸箱的角觸摸球軸承及深.溝軸承進行清洗,增加NBU-15潤滑脂或鋰基潤滑脂(增加量為內腔面積的1∕3~2∕3左右,軸承達不到精 度時可替換.
2. After 5000 hours of operation, the angle touch ball bearings and deep groove bearings of the spindle box of the head should be cleaned, and the NBU-15 grease or lithium grease should be added (the increase is about 1_3~2_of the inner cavity area, and the bearings can be replaced if the accuracy is not reached.
3.中空玻璃設備床身導軌及機頭兩導軸應常常加注潤滑油.
3. insulating glass equipment bed guide and head two guide shaft should often be lubricated.
4.中空玻璃設備機頭要保持清潔,每個作業班非必須及時切屑,除去導軌及機頭外面及內部的塵土和切屑,導軌外出頭運用機油涂抹均勻.
4. Hollow glass equipment head to keep clean, each shift must not timely chip, remove the dust and chips outside and inside the guide rail and the nose, the use of oil smear evenly.
玻璃清洗單調機 功用特征 清洗區和水路系統悉數選用不銹鋼材料制造，經久耐用，起浮規劃的清洗傳送安排，適宜清洗3-8MM厚的玻璃，清洗機的傳送系統選用智能機械無極調速，完結 清洗機的高功率運用，共同單調規劃，保證單調作用，下降能耗。
Functional Features of Glass Cleaning Monotone Cleaning Zone and Waterway System are all made of stainless steel, durable, floating planned cleaning and transmission arrangements, suitable for cleaning 3-8MM thick glass, the transfer system of the cleaning machine adopts intelligent mechanical infinite speed regulation, finishing the high power use of the cleaning machine, common monotone planning, guarantee Monotonous effect, reduce energy consumption.
文章由濟南昌盛機械 ，對雙組份打膠機感興趣的朋友可以關注我們http://ruiyingjituan.com，敬請期待更多精彩內容。
The article is from Jinan Changsheng Machinery. Those who are interested in the two-component glue beater can pay attention to our http://ruiyingjituan.com. Please look forward to more exciting content.
